WATER CONTROL GATES

  1. Home

SLIDE GATES / PENSTOCKS
  • No Comments
Slide Gates / Penstocks

Slide gates / penstocks are used to isolate flow in and out of a conduit and are provided with sealing arrangement on 4 sides. These are offered in varied designs and various materials of construction such as Cast Iron / Ductile cast iron / Alloy cast iron with Nickle / Stainless steel / Super Duplex stainless steel / Aluminum / HDPE / FRP / Composite etc to suit the intended application. These can be provided with manual, electric , pneumatic or hydraulic operating systems.

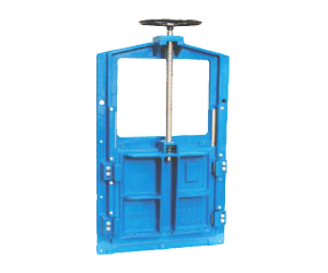

SERIES : A101 – FLATBACK FRAME CAST IRON SLIDE GATE
Opening Size range 100×100 mm to 1200×1200 mm Circular & Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Wall thimble mounted / Wall mounted
Sealing system Metal seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A102 – SECTIONAL FRAME CAST IRON SLIDE GATE
Opening Size range 500×500 mm to 2000×2000 mm Circular & Rectangular sizes on request
Head Range Upto 19 m seating & Upto 9 m unseating
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Wall thimble mounted / Wall mounted
Sealing system Metal seated
Technical Features Click to open
Drawing & Data Sheet Click to open

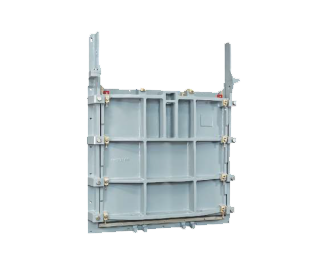

SERIES : A103 – INTEGRAL FRAME CAST IRON SLIDE GATE
Opening Size range 300×300 mm to 2000×2000 mm Circular & Rectangular sizes on request
Head Range Upto 19 m seating & Upto 9 m unseating
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Wall thimble mounted / Wall mounted
Sealing system Metal seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A104 – UNIVERSAL FRAME CAST IRON SLIDE GATE
Opening Size range 600×600 mm to 3600×3600 mm Circular & Rectangular sizes on request
Head Range Upto 30 m seating & Upto 30 m unseating
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Wall thimble mounted / Wall mounted
Sealing system Metal seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A105 – GLYDASEAL CAST IRON SLIDE GATE ( ZERO  LEAKAGE GATE )
Opening Size range 600×600 mm to 3600×3600 mm
Head Range Upto 30 m seating & Upto 30 m unseating
Applicable Standards AWWA C561 / BS 7775
Mounting Wall thimble mounted / Wall mounted
Sealing system Resilient seated
Technical Features Click to open
Drawing & Data Sheet Click to open

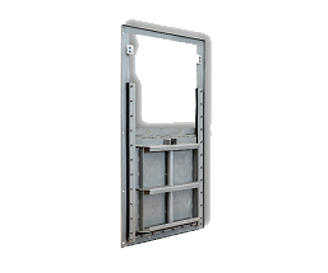

SERIES : A111 – FLATBACK FRAME STAINLESS STEEL SLIDE GATE
Opening Size range 150×150 mm to 1200×1200 mm Circular & Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating
Applicable Standards AWWA C561 / BS 7775
Mounting Wall thimble mounted / Wall mounted
Sealing system Resilient seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A112 – FLATBACK FRAME STAINLESS STEEL SLIDE GATE
Opening Size range 150×150 mm to 1200×1200 mm Circular & Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating
Applicable Standards AWWA C561 / BS 7775
Mounting Wall thimble mounted / Wall mounted
Sealing system Rigid seated
Technical Features Click to open
Drawing & Data Sheet Click to open

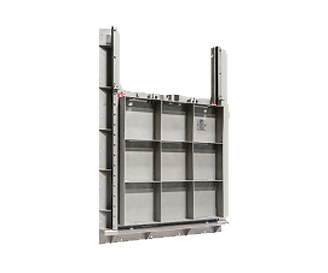

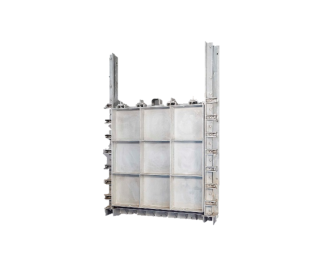

SERIES : A113 – FLANGEBACK FRAME STAINLESS STEEL SLIDE GATE
Opening Size range 500×500 mm to 2100×2100 mm Circular & Rectangular sizes on request
Head Range Upto 10 m seating & Upto 6 m unseating Higher head on request
Applicable Standards AWWA C561 / BS 7775
Mounting Wall thimble mounted / Wall mounted
Sealing system Rigid seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A114 – FLANGEBACK FRAME STAINLESS STEEL SLIDE GATE
Opening Size range 500×500 mm to 3000×3000 mm Circular & Rectangular sizes on request
Head Range Upto 20 m seating & Upto 10 m unseating Higher head on request
Applicable Standards AWWA C561 / BS 7775
Mounting Wall thimble mounted / Wall mounted
Sealing system Resilient seated
Technical Features Click to open
Drawing & Data Sheet Click to open

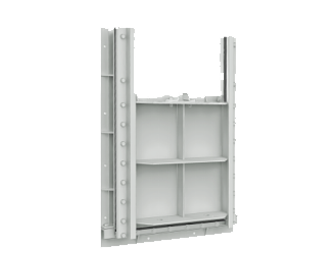

SERIES : A121 – ALUMINUM SLIDE GATE
Opening Size range 100×100 mm to 1500×1500 mm Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating Higher head on request
Applicable Standards AWWA C562
Mounting Wall mounted
Sealing system Resilient seated / Rigid seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A141 – HDPE SLIDE GATE
Opening Size range 100×100 mm to 1500×1500 mm Circular & Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating
Applicable Standards Manufacturers Standard
Mounting Wall mounted
Sealing system Resilient seated
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A151 – COMPOSITE SLIDE GATE
Opening Size range 100×100 mm to 3000×3000 mm Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating Higher head on request
Applicable Standards AWWA C563
Mounting Wall mounted
Sealing system Rigid seated
Technical Features Click to open
Drawing & Data Sheet Click to open

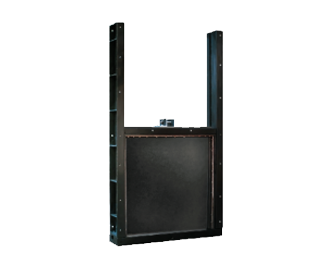

SERIES : A161 – FRP SLIDE GATE
Opening Size range 100×100 mm to 1500×1500 mm Rectangular sizes on request
Head Range Upto 6 m seating & Upto 3 m unseating
Applicable Standards Manufacturers Standard
Mounting Wall mounted
Sealing system Resilient seated
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

OPEN CHANNEL GATES
  • No Comments
Open Channel Gates

Open channel gates are used to isolate flow in and out of an open channel  and are provided with sealing arrangement on 3 sides only with no top sealing arrangement. These are offered in varied designs and various materials of construction such as Cast Iron / Ductile cast iron / Alloy cast iron with Nickle / Stainless steel / Super Duplex stainless steel / Aluminum / HDPE / FRP / Composite etc to suit the intended application. These can be provided with manual, electric , pneumatic or hydraulic operating systems.

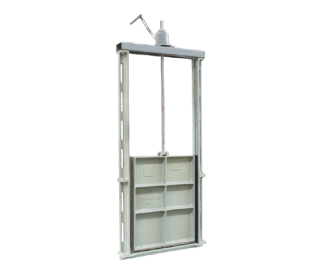

SERIES : A-201 / 202 / 203 – CAST IRON OPEN CHANNEL GATES
Opening Size range 300×300 mm to 1200×1200 mm Circular, rectangular & higher sizes on request
Head Range Open channel flow up to height of slide.
Applicable Standards AWWA C560 / BS 7775
Mounting Side wall embedded (A-201), Side Wall Anchored (A-202), Face Wall Anchored (A-203)
Sealing system Resilient Sealing System (EASY-SLIDE™)
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A-211/212/213 – STAINLESS STEEL OPEN CHANNEL GATES
Opening Size range 300×300 mm to 4500×4500 mm Circular, rectangular & higher sizes on request
Head Range Open channel flow up to height of slide.
Applicable Standards AWWA C560 / BS 7775
Mounting Side wall embedded (A-211), Side Wall Anchored (A-212), Face Wall Anchored (A-213)
Sealing system HARSA™ Rigid sealing system / EASY-SLIDE™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

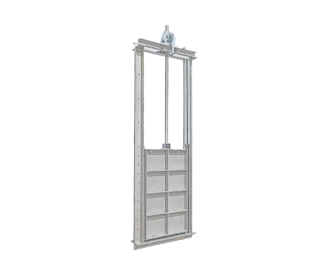

SERIES : A-221/222/223 – ALUMINIUM OPEN CHANNEL GATES
Opening Size range 300×300 mm to 2000×3000 mm Circular, rectangular & higher sizes on request
Head Range Open channel flow up to height of slide.
Applicable Standards AWWA C562
Mounting Side wall embedded (A-221), Side Wall Anchored (A-222), Face Wall Anchored (A-223)
Sealing system HARSA-DUO™ Rigid sealing system / EASY-SLIDE™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

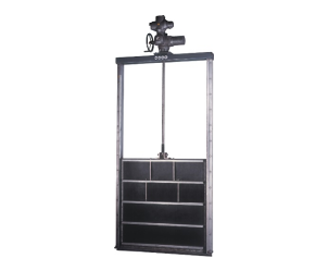

SERIES : A241 – HDPE OPEN CHANNEL GATES
Opening Size range 150×150 mm to 3000×3000 mm Circular & Rectangular sizes on request
Head Range Open channel flow up to height of slide.
Applicable Standards AWWA C563
Mounting Side wall embedded (A-221), Side Wall Anchored (A-222), Face Wall Anchored (A-223)
Sealing system Non-metallic
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A261/262/263 – FRP OPEN CHANNEL GATES
Opening Size range 300×300 mm to 1800×2700 mm Higher sizes on request
Head Range Open channel flow up to height of slide.
Applicable Standards AWWA C563
Mounting Side wall embedded (A-261), Side Wall Anchored (A-262), Face Wall Anchored (A-263)
Sealing system EASY-SLIDE™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

Weir Gates
  • No Comments
Weir Gates

Weir gates are downward opening overflow gates and distinct from downward opening sluice gates. These are provided with sealing arrangement on 3 sides and the sealing arrangement ensures continuous sealing on 3 sides ( 2 sides and bottom ) at any extent / position of gate opening allowing water to overflow only from top side. These are used either for (i) decanting of a reservoir or a tank, or  (ii) maintain precise level control in a reservoir or a tank, or (iii)  to isolate the flow as well as maintain precise level control by providing optional 4th side (top side ) sealing arrangement.

These are offered in varied designs and various materials of construction such as Cast Iron / Ductile cast iron / Alloy cast iron with Nickle / Stainless steel / Super Duplex stainless steel / Aluminum / Composite etc to suit the intended application. These can be provided with manual, electric , pneumatic or hydraulic operating systems.

SERIES : A-301 – CAST IRON WEIR GATES
A-301–cast Opening Size range 300×300 mm to 300×5000 mm Higher sizes on request
Head Range Unseating head equal to the height of slide due to 3 side sealing arrangement.
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Face Wall Anchored
Sealing system Resilient Sealing System (PRESS-ON™)
Technical Features Click to open
Drawing & Data Sheet Click to open

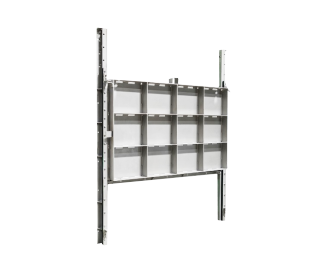

SERIES : A-114 – STAINLESS STEEL WEIR GATES
Opening Size range 500×500 mm to 3000×3000 mm Higher sizes on request
Head Range Unseating head equal to the height of slide due to 3 side sealing arrangement.
Applicable Standards AWWA C560 / BS 7775 / IS 13349
Mounting Face Wall Anchored
Sealing system HARSA™ Rigid sealing system / PRESS-ON™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

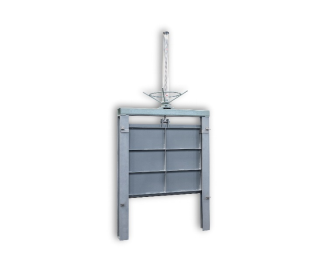

SERIES : A-321 – ALUMINIUM WEIR GATES
Opening Size range 300×300 mm to 2000×3000 mm Higher sizes on request
Head Range Unseating head equal to the height of slide due to 3 side sealing arrangement.
Applicable Standards AWWA C562
Mounting Face Wall Anchored
Sealing system HARSA™ Rigid sealing system / PRESS-ON™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

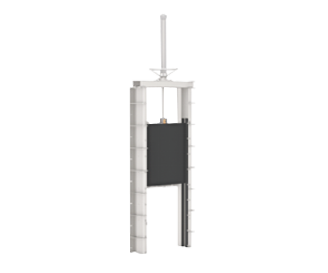

SERIES : A-351 – COMPOSITE WEIR GATES
Opening Size range 300×300 mm to 3000×3000 mm Higher sizes on request
Head Range Unseating head equal to the height of slide due to 3 side sealing arrangement.
Applicable Standards AWWA C563
Mounting Face Wall Anchored
Sealing system HARSA-ML™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

Flap Gates
  • No Comments
Flap Gates

Flap gates are used as an efficient backflow  prevention solution in most free discharge applications. These are used for automatic drainage from outfall structures to river , estuaries and sea and for preventing reverse flow flood / tide from river, estuary and sea to plant. These are gravity operated and need minimal water pressure for operation. The flap opens when the head in pipe or conduit exceeds 0.2 feet above the head in the receiving body of water. The flap closes when the head in the receiving body of water exceeds the head in the pipe or the conduit. When fully open the flap gate offers a very low head loss.  These are offered in varied designs and various materials of construction such as Cast Iron / Ductile cast iron / Stainless steel / Super Duplex stainless steel / HDPE / Composite etc to suit the intended application.

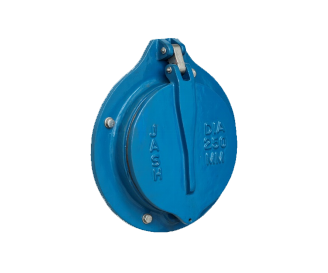

SERIES : A-601 – CAST IRON FLAP GATES
Opening Size range 100 mm to 750 mm Higher sizes on request
Head Range Seating head up to 6 m.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

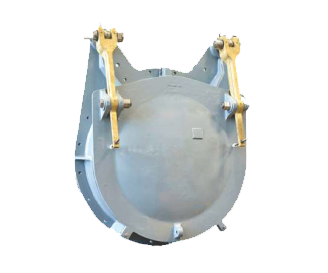

SERIES : A-602 – CAST IRON FLAP GATES (FC-AC & FV-ACP)
Opening Size range 300 mm to 1500 mm (FV-ACP design) 300 mm to 2700 mm (FV-AC design) Higher sizes on request
Head Range Suitable for high seating head as per requirement.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

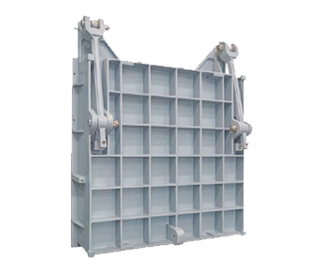

SERIES : A-603 – CAST IRON FLAP GATES (FV – AR)
Opening Size range 300 mm to 2700 mm Higher sizes on request
Head Range Suitable for high seating head as per requirement.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

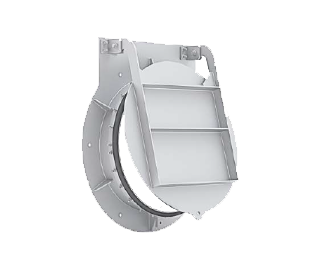

SERIES : A-611, 612 – STAINLESS STEEL FLAP GATES
Opening Size range 300 mm to 2700 mm Higher sizes on request
Head Range Suitable for high seating head as per requirement.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

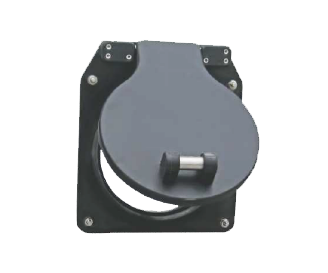

SERIES : A-641, 642 – HDPE FLAP GATES
Opening Size range 300 mm to 1500 mm Higher sizes on request
Head Range Suitable for low head conditions.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

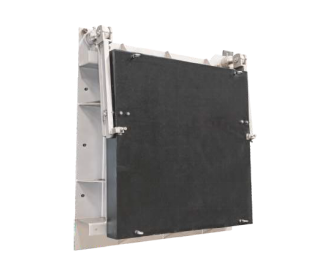

SERIES : A-652 – COMPOSITE FLAP GATES
Opening Size range 300 mm to 2700 mm Higher sizes on request
Head Range Suitable for low head conditions.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open

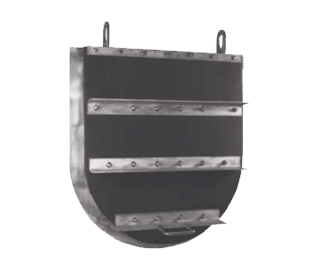

SERIES : A-672 – FLEXIBLE FLAP GATES
Opening Size range 300 mm to 1200 mm Higher sizes on request
Head Range Suitable for low head conditions.
Applicable Standards As per Jash design.
Mounting Face Wall Anchored
Sealing system Resilient Seal arrangement
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

STOP LOGS
  • No Comments
Stoplogs

Multipiece stoplogs are used instead of single piece stoplogs when there is a weight and height restriction in handling. Stoplogs are used for isolation application in open channel where (i) immediate closure or isolation of waterway opening in a short time is not required (ii) isolation requirement is infrequent and (iii) more than one person is available for operation. Stoplogs are suitable for insertion in multiple frames installed at different locations provided the stoplogs and the frame are of the same width.

These are offered in varied designs and various materials of construction such as Aluminum / Stainless steel / Composite etc to suit the intended application. These can be provided with automatically engaging lifting beam so as to be lifted using  manual or electric hoisting mechanism.

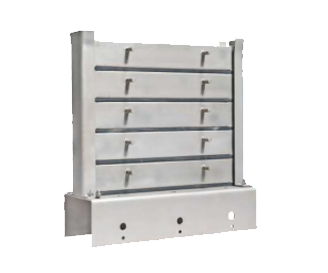

SERIES : A-411 / 412 / 413– STAINLESS STEEL STOPLOGS
Opening Size range 300X300 mm to 3000X5000 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-411), Side Wall Anchored (A-412), Face Wall Anchored (A-413)
Sealing system HARSA™ Rigid sealing system / LIP-GLIDE™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

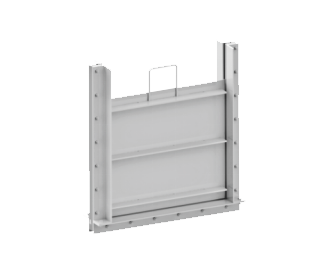

SERIES : A-415 / 416 / 417 – STAINLESS STEEL HANDSTOP / STOPLOGS
Opening Size range 100X100 mm to 750X700 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-425), Side Wall Anchored (A-426), Face Wall Anchored (A-427)
Sealing system HARSA™ Rigid sealing system / Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

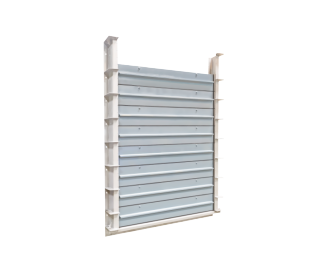

SERIES : A-421 / 422 / 423 – ALUMINIUM SECTIONAL STOPLOGS
Opening Size range 300X300 mm to 3000X5000 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-421), Side Wall Anchored (A-422), Face Wall Anchored (A-423)
Sealing system LIP-GLIDE™ Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A-425 / 426 / 427 – ALUMINIUM HANDSTOP / STOPLOGS
Opening Size range 100X100 mm to 750X700 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-425), Side Wall Anchored (A-426), Face Wall Anchored (A-427)
Sealing system HARSA™ Rigid sealing system / Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open

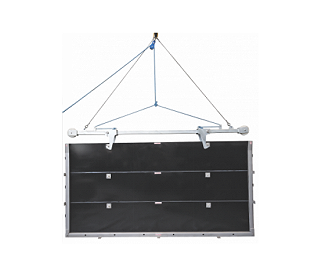

SERIES : A-451 / 452 / 453 – COMPOSITE SECTIONAL STOPLOGS
Opening Size range 300X300 mm to 3000X5000 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-451), Side Wall Anchored (A-452), Face Wall Anchored (A-453)
Sealing system LIP-GLIDE™ Resilient Sealing System / WRAP-AROUND™ Resilient Sealing System
Technical Features Click to open
Drawing & Data Sheet Click to open
SERIES : A-465 / 466 / 467 – FRP HAND STOP / STOPLOGS
Opening Size range 300X300 mm to 750X750 mm Higher sizes on request
Head Range Up to logs stacked height seating / unseating.
Applicable Standards As per Jash design.
Mounting Side wall embedded (A-465), Side Wall Anchored (A-466), Face Wall Anchored (A-467)
Sealing system HARSA™ Rigid sealing system / Resilient Sealing System.
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More
