Bulk Head Gates

Bulkhead gates are a cost-effective way for dewatering channels. They are large fabricated gates used to close the waterway for maintenance of the downstream equipment in most cases. These gates are custom designed for specific applications in almost any size. Stacking gates also permits flow control for larger openings.

The term bulkhead gate can be used to describe what is essentially very large slide gate or to describe a device used like stop logs but providing significantly fewer handling iterations. Bulkhead gates are usually installed and removed under balanced head conditions. In case if it is not possible to fill downstream area to achieve balance head condition, Bulkhead gate will be designed for crack opening considering higher operating capacity of lifting mechanism.

These gates are offered in various materials of construction such as Carbon steel / Stainless steel / Super Duplex stainless steel etc. to suit the intended application. These gates can be operated with electric, pneumatic or hydraulic, cable operating systems.

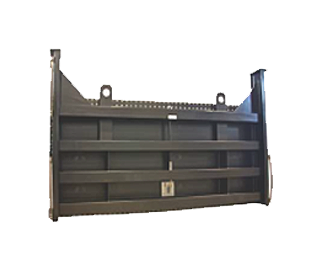

SERIES : A-511 / 512 / 513– STAINLESS STEEL BULK HEAD SLIDE GATES
Opening Size range 900X900 mm to 4500X4500 mm Higher sizes on request
Head Range Upto 30 m seating & Upto 30 m unseating
Applicable Standards As per Jash design
Mounting Side wall embedded (A-511), Side Wall Anchored (A-512), Face Wall Anchored (A-513)
Sealing system Resilient Sealing System
Technical Features Click to open
Drawing & Data Sheet Click to open

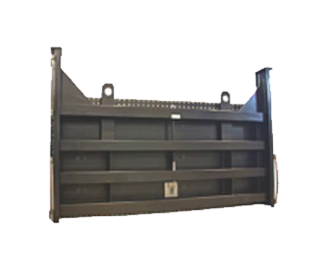

SERIES : A-521 / 522 / 523– ALUMINIUM BULK HEAD SLIDE GATES
Opening Size range 900X900 mm to 4500X4500 mm Higher sizes on request
Head Range Upto 10 m seating & Upto 10 m unseating
Applicable Standards As per Jash design
Mounting Side wall embedded (A-521), Side Wall Anchored (A-522), Face Wall Anchored (A-523)
Sealing system Resilient Sealing System
Technical Features Click to open
Drawing & Data Sheet Click to open

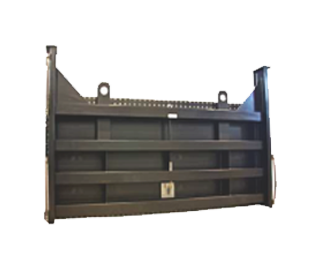

SERIES : A-531 / 532 / 533– STAINLESS STEEL BULK HEAD SLIDE GATES
Opening Size range 900X900 mm to 4500X4500 mm Higher sizes on request
Head Range Upto 30 m seating & Upto 30 m unseating
Applicable Standards As per Jash design
Mounting Side wall embedded (A-531), Side Wall Anchored (A-532), Face Wall Anchored (A-533)
Sealing system Resilient Sealing System
Technical Features Click to open
Drawing & Data Sheet Click to open
