CLARIFIER MODEL: SPT-C – CENTRALLY DRIVEN PIER MOUNTED

CLARIFIER MODEL: SPT-C – CENTRALLY DRIVEN PIER MOUNTED
CLARIFIER MODEL: SPT-C – CENTRALLY DRIVEN PIER MOUNTED
36m Dia Clarifier supplied to 162 MLD STP at Surat
Application Generally used in sewage treatment plants/ effluent treatment plants, to thicken the sludge by sedimentation of the suspended solid particle in the effluent water & to get the clarified water from the overflow
Type SPT-C – centrally driven pier mounted
Size range Central driven – 12m to 60m dia
Rotor Three stage reduction slewing ring ball bearing type center mechanism
Torque range From 15000nm to 170000nm
Over load protection Load cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation 3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue Click to open
Reference GA drawing Click to open
Photo gallery Click to open
Read More

CLARIFIER MODEL: SPC-B – PERIPHERAL DRIVEN PIER MOUNTED

CLARIFIER MODEL: SPC-B – PERIPHERAL DRIVEN PIER MOUNTED
CLARIFIER MODEL: SPC-B – PERIPHERAL DRIVEN PIER MOUNTED

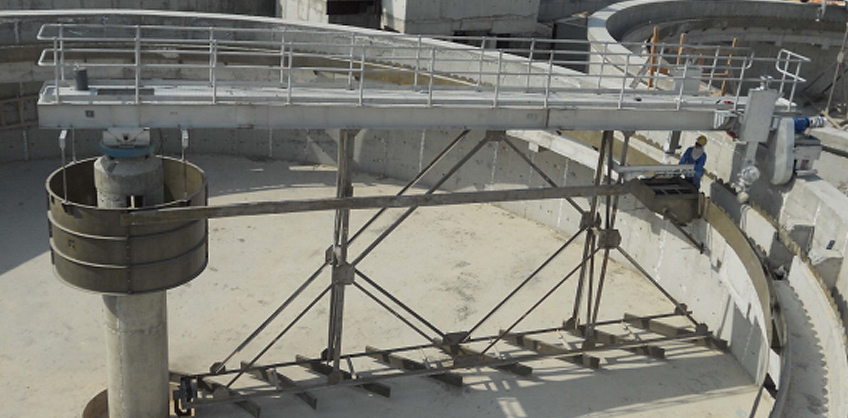

24 m Dia Traction Clarifier Supplied to Ashghal WTP, Qatar
ApplicationGenerally used in sewage treatment plants/ effluent treatment plants, to settle the suspended solid particle in the effluent water by sedimentation & to get the clarified water from the overflow
TypeSPC-B – peripheral driven pier mounted
Size rangePeripheral driven – 9M TO 60M DIA
RotorSlewing ring type turn table, traction carriage with poly urethane lined wheels
Torque rangeFrom 3400nm to 38000nm
Over load protectionProtection on the gear box & overload relay in control panel
Material of construction offered

Mild Steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS & Marine Grade Aluminium

Special coating – Hot Dip Galvanizing, FRP lining & rubber lining

Optional features

Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way

Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS

Drawings & documentation3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More

CLARIFIER MODEL: SPC-D-RC – CENTRALLY DRIVEN BRIDGE /PIER MOUNTED HIGH-RATE SOLID CONTACT TYPE

CLARIFIER MODEL: SPC-D-RC – CENTRALLY DRIVEN BRIDGE /PIER MOUNTED HIGH-RATE SOLID CONTACT TYPE
CLARIFIER MODEL: SPC-D-RC – CENTRALLY DRIVEN BRIDGE /PIER MOUNTED HIGH-RATE SOLID CONTACT TYPE

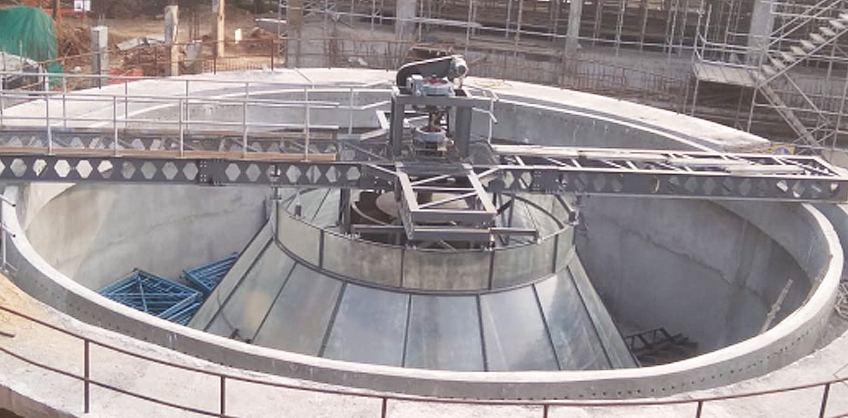

14.5 m Dia Reactor Clarifier Supplied to 16.4 MLD Narasingpur WTP, Odisha
ApplicationGenerally used in raw water treatment plants/ effluent treatment plants, to clarify the water & to remove the turbidity, suspended particles.
TypeSPC-D-RC – centrally driven bridge /pier mounted high-rate solid contact type
Size rangeCentral driven – 5m to 40m dia
RotorCombination type drive head for rake arm & turbine.  Combination type three stage reduction slewing ring ball bearing type center mechanism
Torque rangeFrom 3400nm to 96000nm
Over load protectionLoad cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered

Mild Steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS & Marine Grade Aluminium

Special coating – Hot Dip Galvanizing, FRP lining & rubber lining

Optional features

Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way

Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS

Drawings & documentation3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More

CLARIFIER MODEL: SPC-A – CENTRALLY DRIVEN BRIDGE MOUNTED

CLARIFIER MODEL: SPC-A – CENTRALLY DRIVEN BRIDGE MOUNTED
CLARIFIER MODEL: SPC-A – CENTRALLY DRIVEN BRIDGE MOUNTED

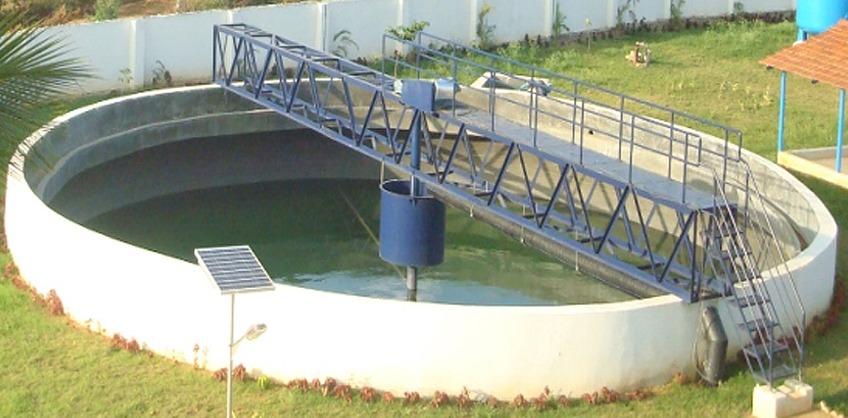

18m Dia Clarifier Supplied to 4 MLD Suryanagar STP, Bangalore
ApplicationGenerally used in sewage treatment plants/ effluent treatment plants, to settle the suspended solid particle in the effluent water by sedimentation & to get the clarified water from the overflow
TypeSPC-A – centrally driven bridge mounted
Size rangeCentral driven – 3m to 24m dia
RotorSingle stage reduction worm wheel type drive head
Torque rangeFrom 3400nm to 38000nm
Over load protectionLoad cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered

Mild Steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS & Marine Grade Aluminium

Special coating – Hot Dip Galvanizing, FRP lining & rubber lining

Optional features

Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way

Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS

Drawings & documentation3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More

CLARIFIER MODEL: SPC-E-SM – CENTRALLY DRIVEN PIER MOUNTED SUCTION MANIFOLD TYPE

CLARIFIER MODEL: SPC-E-SM – CENTRALLY DRIVEN PIER MOUNTED SUCTION MANIFOLD TYPE
CLARIFIER MODEL:SPC-E-SM – CENTRALLY DRIVEN PIER MOUNTED SUCTION MANIFOLD TYPE

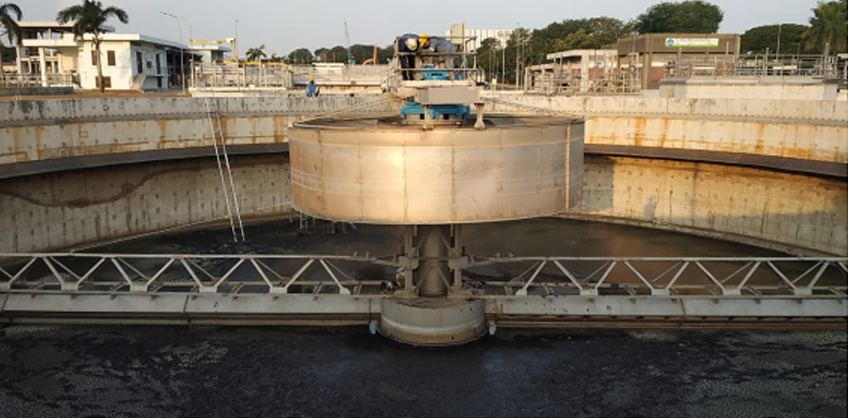

30m Dia Suction Clarifier supplied to Jurong WRP, Singapore
ApplicationGenerally used in sewage treatment plants/ effluent treatment plants, to settle the suspended solid particle in the effluent water by sedimentation & to get the clarified water from the overflow. The sludge settled is collected through orifice by the centripetal force created by the rake arm rotation.
TypeSPC-E-SM – CENTRALLY DRIVEN PIER MOUNTED SUCTION MANIFOLD TYPE
Size rangeCentral driven – 20m to 35m dia
RotorThree stage reduction slewing ring ball bearing type center mechanism
Torque rangeFrom 15000nm to 170000nm
Over load protectionLoad cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered

Mild Steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS & Marine Grade Aluminium

Special coating – Hot Dip Galvanizing, FRP lining & rubber lining

Optional features

Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way

Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS

Drawings & documentation3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More

CLARIFIER MODEL: SPC-C – CENTRALLY DRIVEN PIER MOUNTED

CLARIFIER MODEL:  SPC-C – CENTRALLY DRIVEN PIER MOUNTED
CLARIFIER MODEL: SPC-C – CENTRALLY DRIVEN PIER MOUNTED

29.5m Dia Clarifier supplied to 100 MLD STP at Hebbal, Bangalore
ApplicationGenerally used in sewage treatment plants/ effluent treatment plants, to settle the suspended solid particle in the effluent water by sedimentation & to get the clarified water from the overflow
TypeSPC-C – centrally driven pier mounted
Size rangeCentral driven – 12m to 60m dia
RotorThree stage reduction slewing ring ball bearing type center mechanism
TORQUE RANGEFROM 15000NM TO 170000NM
Over load protectionLoad cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered

Mild steel – E250 & E350

Stainless steel grades -304, 304L, 316 & 316L

Special materials- super duplex SS & marine grade aluminium

Special coating – hot dip galvanizing, FRP lining & rubber lining

Optional features

Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way

Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS

Drawings & documentation3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More
