Roller gates are flat gates operated vertically and are made up of skin plate supported by vertical and horizontal ribs along with rollers or wheels transferring water thrust on rails or tracks embedded in concrete. Roller gates are used for flood control jobs, irrigation jobs, industrial water control jobs, dams, water treatment plants, sewage treatment plants & power plants etc. Roller gates are designed to control flow and reduce operating Loads for Large openings, high head applications or where frequent operation is required.
These gates are offered in various materials of construction such as Stainless steel / Super Duplex stainless steel / Structural steel etc. to suit the intended application. These gates can be operated with electric, hydraulic and cable operating systems.

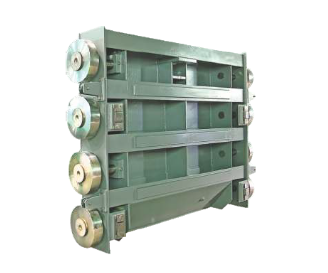

SERIES : A-515 – STAINLESS STEEL ROLLER GATES
SERIES : A-535– STRUCTURAL STEEL ROLLER GATES
|Opening Size range||up to 6000X6000 mm, Higher sizes on request|
|Head Range||Upto 60 m seating & Upto 60 m unseating|
|Applicable Standards||As per Jash design|
|Mounting||Side wall embedded, Side Wall Anchored, Face Wall Anchored|
|Sealing system||Resilient Sealing System|
|Technical Details||Click to open|
