Bulk Solid Handling Valves

SLIDE GATE VALVE: SERIES C601/C611

July 19, 2021
No Comments

SLIDE GATE VALVE: UNIDIRECTIONAL, RESILIENT SEATED, MODEL: ZFB, SERIES C601/C611

SERIES: C-601, ZFB – Resilient seated valve with replaceable metallic ring – Cast Iron / Ductile Iron Construction SERIES: C-611, ZFB – Resilient seated valve with replaceable metallic ring – Cast Stainless steel / Cast Steel Construction

Application	These unidirectional valves are suitable for pressure-tight shut-off up to 3 Bar (45 PSI) for powder and granular materials. Its unique design ensures minimal material retention in the valve, the ability to achieve shut-off in standing columns and leak-tight to the environment.
Size Range	DN 100 (4”) to DN 600 (24”)
Applicable Standards	MSS SP-81
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 250°C
Flange drilling	ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Dust Cover	Provided
Mode of operations	Manual, chain wheel, pneumatic, electric actuator and Hydraulic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

SLIDE GATE VALVE: UNIDIRECTIONAL, RESILIENT SEATED, MODEL: ZFB, SERIES C602/C612

SERIES: C-602, ZFB – Resilient seated valve with inflatable seal – Cast Iron / Ductile Iron Construction SERIES: C-612, ZFB – Resilient seated valve with inflatable seal – Cast Stainless steel / Cast Steel Construction

Application	These unidirectional valves are suitable for pressure-tight shut-off up to 5 Bar (70 PSI) for powder and granular materials from the material flow side. Its unique design ensures minimal material retention in the valve, the ability to achieve shut-off in standing columns and leak-tight to the environment.
Size Range	DN 100 (4”) to DN 600 (24”)
Applicable Standards	MSS SP-81
Pressure Rating	PN5 (70 PSI)
Temperature Range	-20°C to 250°C
Flange drilling	ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Dust Cover	Provided
Mode of operations	Manual, chain wheel, pneumatic, electric actuator and Hydraulic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

SWING GATE VALVE: UNIDIRECTIONAL, RESILIENT SEATED, MODEL: KU-STD, SERIES C301/C311

SERIES: C-301, KU STD – Resilient seated valve with viper seal – Cast Iron / Ductile Iron Construction SERIES: C-311, KU STD – Resilient seated valve with viper seal – Cast Stainless steel / Cast Steel Construction

Application	These unidirectional valves are suitable for pressure-tight shut off up to 3 Bar (45 PSI) for powders and granular materials. Its unique design offers fast shut-off (less than 1 Secs, even manually) and allows shut-off in standing columns and is leak-tight to the environment.
Size Range	DN 100 (4”) to DN 400 (16”)
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 250°C
Flange drilling	ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations	Manual, pneumatic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

SWING GATE VALVE: UNIDIRECTIONAL, METAL SEATED, MODEL: KU-HT, SERIES C312

SERIES: C-312, KU HT – Integral/replaceable metal seated valve – Cast Stainless steel

Application	These are high-temperature unidirectional valves suitable for bed ash drain application in coal-fired boilers. These valves are made up of special grade stainless steel to suit the higher temperature. Its unique design offers fast shut-off (less than 1 Sec) and allows shut-off in standing columns and is leak-tight to the environment.
Size Range	DN 100 (4”) to DN 400 (16”)
Pressure Rating	PN3 (45 PSI)
Temperature Range	800°C to 1100°C
Flange drilling	ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations	Manual, Pneumatic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

SWING GATE VALVE: BIDIRECTIONAL, RESILIENT SEATED, MODEL: KU-HP+PAM, SERIES C303/C313

SERIES: C-303, KU PAM+HP – Resilient seated valve with inflatable seal – Cast Iron / Ductile Iron Construction SERIES: C-313, KU PAM+HP – Resilient seated valve with inflatable seal – Cast Stainless steel / Cast Steel Construction

Application	These valves are designed for pressure and vacuum tight shut-off up to 5 Bar (70 PSI) in pneumatic conveying of bulk materials and can sustain pressure in both the directions. These valves are 100% leak-tight to the environment and are ideal as the main inlet valve of pressure vessels in dense phase conveying.
Size Range	DN 100 (4”) to DN 400 (16”)
Pressure Rating	PN5 (70 PSI)
Temperature Range	-20°C to 250°C
Flange drilling	ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations	Pneumatic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

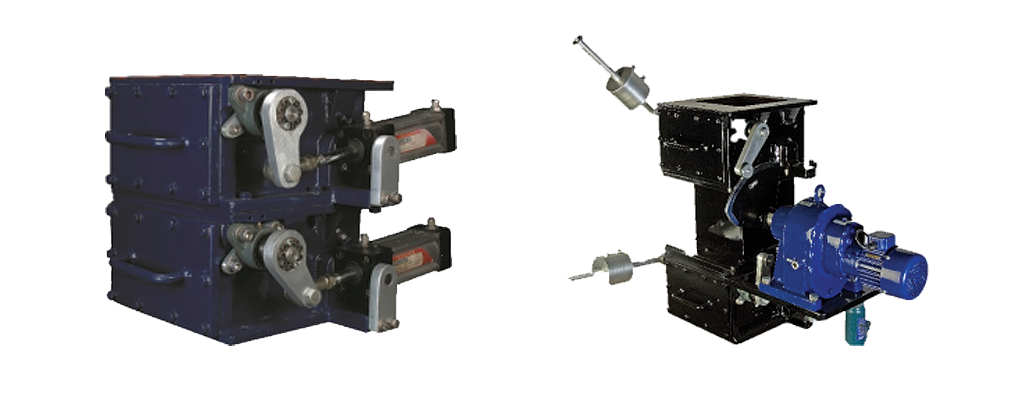

DOUBLE FLAP VALVE: MODEL-DFG, SERIES C401

SERIES: C-401, DFG – Metal seated valve with replaceable cone & flapper – Cast Iron construction

Application	These valves are ideal for an airlock, batching, or metering application in free-flowing and abrasive bulk materials. These are specially designed to prevent bridging of material in the valve and enable in-situ replacement of seat and flapper. Seat and flapper are hardened to withstand abrasion and provide durabaility. Airlock is maintained by precision lapped seat and flapper by elimination any air leakages. These valves are offered in short height for space tight installations.
Size Range	200 (8”) SQ. – 400 (16”) SQ. Higher sizes on request
Flow rate	1.0 to 4.5 m³/hr, depending upon the size
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 800°C
Flange drilling	As per Jash Schutte standard
Optional features	Spool piece for capacity enhancement
Mode of operations	Counterweight, pneumatic, geared motor
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

DOUBLE FLAP VALVE: MODEL-DFG, SERIES C402

SERIES: C-402, DFG – Metal seated valve with replaceable cone & flapper – Cast Iron construction

Application	These valves are ideal for an airlock, batching, or metering application in free-flowing and abrasive bulk materials. These are specially designed to prevent bridging of material in the valve and enable in-situ replacement of seat and flapper. Seat and flapper are hardened to withstand abrasion and provide durabaility. Airlock is maintained by precision lapped seat and flapper by elimination any air leakages. These valves are offered in short height for space tight installations.. These are provided with increased height to handle a higher flow rate.
Size Range	200 (8”) SQ. – 300 (12”) SQ. Higher size on request
Flow rate	2.50 to 8.0 m³/hr, depending upon the size
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 800°C
Flange drilling	As per Jash Schutte standard
Optional features	Spool piece for capacity enhancement
Mode of operations	Counterweight, pneumatic, geared motor
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

CASTED SQUARE PORT VALVE: UNIDIRECTIONAL, METAL SEATED, MODEL: ZFS, SERIES C701/711

SERIES: C-701, ZFS – Integral metal seated valve – Cast Iron construction SERIES: C-711, ZFS – Integral metal seated valve – Cast Stainless Steel construction

Application	These are square port cast valves for material tight shut-off of free-flowing bulk solid materials. These valves are ideal for the isolation of double flap valves and airlock for maintenance.
Size Range	100 (4”) SQ. – 500 (20”) SQ.
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 800°C
Flange drilling	As per Jash Schutte standard
Optional features	Abrasion-resistant coating, Stem Cover
Mode of operations	Manual, chain wheel, pneumatic, electric actuator and Hydraulic
Technical Features	Click to open
Drawing & Data Sheet	Click to open

July 19, 2021
No Comments

FABRICATED SLIDE VALVE: UNIDIRECTIONAL, METAL SEATED, MODEL: VEG, SERIES C541/531

SERIES: C-541, VEG – Integral metal seated valve – Mild Steel construction SERIES: C-531, VEG – Integral metal seated valve – Stainless Steel construction

Application	The VEG series valves are custom-built fabricated valves, built to suit the size and application requirement of the customer.
Size Range	From Sq. 100 (4”) – Sq. 4000 (160”) or as required by the customer.
Pressure Rating	PN3 (45 PSI)
Temperature Range	-20°C to 950°C
Flange drilling	As per Jash Schutte standard / Custom
Optional seating	Resilient seat up to 250°C, Inflatable seat
Optional features	Abrasion-resistant coating, Stem Cover, Extended stem, Dust cover
Mode of operations	Manual, chain wheel, pneumatic, electric actuator and Hydraulic
Technical Features	Click to open
