Swing Gate Valve

  1. Home

SWING GATE VALVE: SERIES C301/C311
  • No Comments
SWING GATE VALVE: UNIDIRECTIONAL, RESILIENT SEATED, MODEL: KU-STD, SERIES C301/C311
SERIES: C-301, KU STD – Resilient seated valve with viper seal – Cast Iron / Ductile Iron Construction
SERIES: C-311, KU STD – Resilient seated valve with viper seal – Cast Stainless steel / Cast Steel Construction
Application These unidirectional valves are suitable for pressure-tight shut off up to 3 Bar (45 PSI) for powders and granular materials. Its unique design offers fast shut-off (less than 1 Secs, even manually) and allows shut-off in standing columns and is leak-tight to the environment.
Size Range DN 100 (4”) to DN 400 (16”)
Pressure Rating PN3 (45 PSI)
Temperature Range -20°C to 250°C
Flange drilling ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations Manual, pneumatic
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

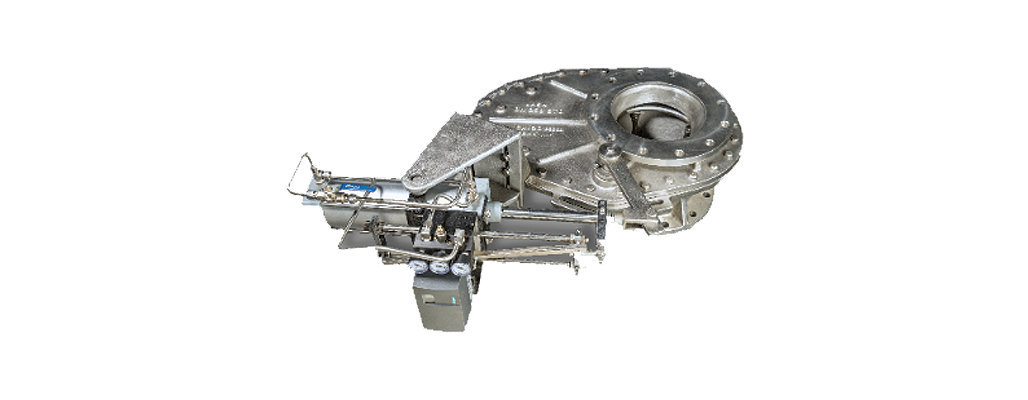

SWING GATE VALVE: SERIES C312
  • No Comments
SWING GATE VALVE: UNIDIRECTIONAL, METAL SEATED, MODEL: KU-HT, SERIES C312
SERIES: C-312, KU HT – Integral/replaceable metal seated valve – Cast Stainless steel
Application These are high-temperature unidirectional valves suitable for bed ash drain application in coal-fired boilers. These valves are made up of special grade stainless steel to suit the higher temperature. Its unique design offers fast shut-off (less than 1 Sec) and allows shut-off in standing columns and is leak-tight to the environment.
Size Range DN 100 (4”) to DN 400 (16”)
Pressure Rating PN3 (45 PSI)
Temperature Range 800°C to 1100°C
Flange drilling ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations Manual, Pneumatic
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More

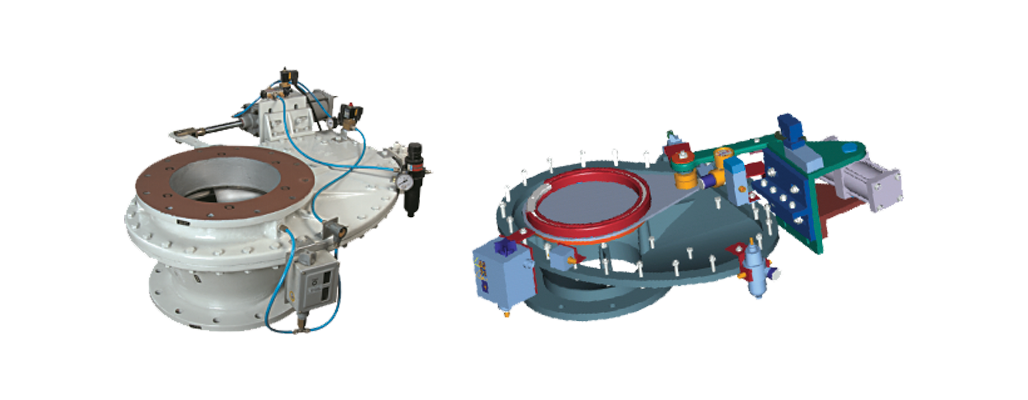

SWING GATE VALVE: SERIES C303/C313
  • No Comments
SWING GATE VALVE: BIDIRECTIONAL, RESILIENT SEATED, MODEL: KU-HP+PAM, SERIES C303/C313
SERIES: C-303, KU PAM+HP – Resilient seated valve with inflatable seal – Cast Iron / Ductile Iron Construction
SERIES: C-313, KU PAM+HP – Resilient seated valve with inflatable seal – Cast Stainless steel / Cast Steel Construction
Application These valves are designed for pressure and vacuum tight shut-off up to 5 Bar (70 PSI) in pneumatic conveying of bulk materials and can sustain pressure in both the directions. These valves are 100% leak-tight to the environment and are ideal as the main inlet valve of pressure vessels in dense phase conveying.
Size Range DN 100 (4”) to DN 400 (16”)
Pressure Rating PN5 (70 PSI)
Temperature Range -20°C to 250°C
Flange drilling ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10
Mode of operations Pneumatic
Technical Features Click to open
Drawing & Data Sheet Click to open
Read More
