CLARIFLOCCULATOR MODEL: SPF -A PERIPHERAL DRIVEN PIER MOUNTED CAGE DRIVEN
| CLARIFLOCCULATOR MODEL: SPF -A PERIPHERAL DRIVEN PIER MOUNTED CAGE DRIVEN | |

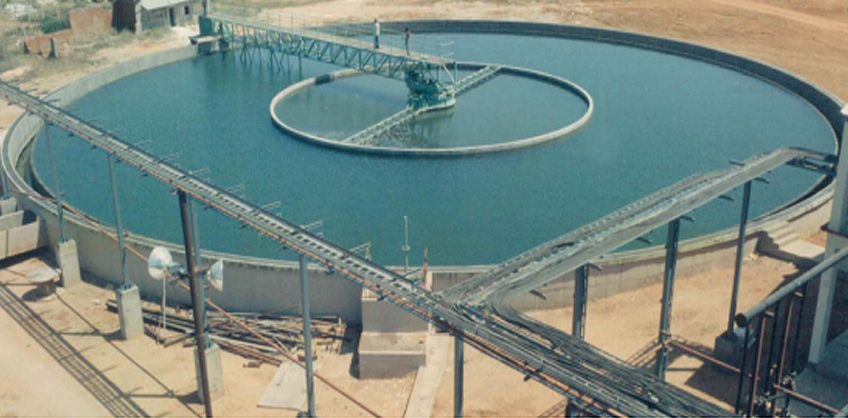

45m Dia Clarifier supplied to Cochin Refinery Ltd | |
| Application | Generally used in raw water treatment plants/ effluent treatment plants, to clarify the water & to remove the turbidity, suspended particles. |
| TYPE | SPF -B peripheral driven pier mounted |
| Size range | Peripheral driven – 8m to 60m dia |
| Flocculator drive | Three stage reduction slewing ring ball bearing type center mechanism |
| Rotor | Slewing ring type turn table with lugs, traction carriage with poly urethane lined wheels |
| Torque range | From 3400nm to 38000nm |
| Over load protection | Protection on the gear box & overload relay in control panel |
| Material of construction offered | Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining |
| Optional features | Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS |
| Drawings & documentation | 3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets |
| Erection & maintenance manual | Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers. |
