Butterfly gates are normally used for Sewage treatment plants, Water filtration plants, Power plants, industrial water control jobs applications. Butterfly gates are sturdily designed for long life and low maintenance in difficult conditions, but also incorporate field-adjustment features.
Jash butterfly gates have bubble – tight shutoff, stainless steel to resilient sealing, three side and four side sealing options, self-lubricating bushings and two-way adjustable thrust bearings. Specially designed vane reduces turbulence and strengthens assembly.
These gates are offered in various materials of construction such as Stainless steel / Super Duplex stainless steel / Structural steel etc. to suit the intended application. These gates can be operated with manual and electric actuator.
|

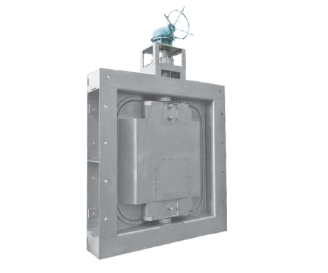

SERIES : A-911 – STAINLESS STEEL BUTTERFLY GATES
SERIES : A-931 – STRUCTURAL STEEL BUTTERFLY GATES |
||
 |
Opening Size range | up to 3000X6000 mm Square, rectangular & higher sizes on request |
| Head Range | Upto 10 m seating & Upto 10 m unseating | |
| Applicable Standards | As per Jash design | |
| Mounting | Side wall embedded, Side Wall Anchored, Face Wall Anchored | |
| Sealing system | Resilient Sealing System | |
| Technical Details | Click to open | |
