Treatment Process Equipment

AGITATOR MODEL: SP-AGT

July 22, 2021
No Comments

AGITATOR MODEL: SP-AGT

AGITATOR MODEL: SP-AGT

Application	Generally used in sewage treatment plants/ effluent treatment plants, For rapid mixing of flocculant/coagulant into the water or to provide continues agitation to the solution to avoid settling.
Type	SPT-AGT- agitator / flash mixer
Size range	0.4m dia/Sq tank to 6m dia/ Sq tank, 0.5m HT to 6.5m HT
Motor capacity range	0.5 HP TO 25 HP
Rotor	Parallel inline helical geared motor
Impeller type	Pitch blade turbine, propeller type, paddle type & vertical flat blade turbine type
Over load protection	Protection on the overload relay in control panel
Material of construction offered	Mild steel – E250 & E350 Stainless steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS Special coating – Hot Dip Galvanizing
Optional features	Local control panel/ push button starter, platform with handrail
Drawings & documentation	3 D drawings, power calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

SURFACE AERATOR MODEL: SP-SA-2 –FLOATING TYPE

SURFACE AERATOR MODEL: SP-SA-2 –FLOATING TYPE
Slow Speed Floating Type aerators supplied to IPOH STP at Malaysia
Application	Generally used in sewage treatment plants/ effluent treatment plants, To improve the bod/cod levels in the effluent water by transferring oxygen from atmosphere.
Type	SPT-SA-1- slow speed floating type
Size range	3 HP to 75 HP with zone for influence of 31m dia max & 5.1m liquid depth
Rotor	Parallel inline helical geared motor
Oxygen transfer rate	1.6 TO 1.8 kg/HP/H
Over load protection	Protection on the gear box & overload relay in control panel
Material of construction offered	Mild steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS Special coating – Hot Dip Galvanizing
Optional features	Local control panel/ push button starter, platform with handrail, floating pontoon
Drawings & documentation	3 D drawings, power calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

SURFACE AERATOR MODEL: SP-SA-1 –FIXED TYPE

SURFACE AERATOR MODEL: SP-SA-1 –FIXED TYPE
Slow Speed Fixed Type aerators supplied to 4 MLD STP at Bangalore
Application	Generally used in sewage treatment plants/ effluent treatment plants, To improve the bod/cod levels in the effluent water by transferring oxygen from atmosphere.
Type	SPT-SA-1- slow speed fixed type
Size range	3 HP to 75 HP with zone for influence of 31m dia max & 5.1m liquid depth
Rotor	Parallel inline helical geared motor
Oxygen transfer rate	1.6 TO 1.8 KG/HP/H
Over load protection	Protection on the gear box & overload relay in control panel
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS Special coating – Hot Dip Galvanizing
Optional features	Local control panel/ push button starter
Drawings & documentation	3 D drawings, power calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

DETRITOR MODEL: SP-DT-VT – VORTEX TYPE

DETRITOR MODEL: SP-DT-VT – VORTEX TYPE

Application	Generally used in sewage treatment plants/ effluent treatment plants, To remove the grit particles sizing greater than 0.15mm having density of 2.65.
Type	SPT-DET – centrally driven bridge mounted
Capacity range	1 MLD to 200 MLD
Chamber size range	1.5 M TO 6 M dia with 2M TO 4.5 M HT
Rotor	Single stage reduction worm wheel type drive head
Torque range	From 3400nm to 10000nm
Over load protection	Protection on the gear box & overload relay in control panel
Material of construction offered	Mild steel – E250 & E350 Stainless steel grades -304, 304L, 316 & 316L Special materials- super duplex SS Special coating – hot dip galvanizing
Accessories	Screw classifier mechanism, air lift pump /turbo grit pump
Optional features	Local control panel
Drawings & documentation	3 D drawings, power, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

DETRITOR MODEL: SP-DT-STD – CONVENTIONAL TYPE

DETRITOR MODEL: SP-DT-STD – CONVENTIONAL TYPE
Detritor supplied to 70 MLD STP at Coimbatore
Application	Generally used in sewage treatment plants/ effluent treatment plants, to remove the grit particles sizing greater than 0.15mm having density of 2.65.
TYPE	SPT-DET-STD- conventional type centrally driven bridge mounted
Size range	Centrally driven – 1.5m to 16m Sq
Rotor	Single stage reduction worm wheel type drive head
Torque range	From 3400nm to 17000nm
Over load protection	Load cell digital type / high tension spring loaded mechanical mercury bulb type. Shear pin arrangement for classifier
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – hot dip galvanizing
Accessories	Rake / screw classifier & organic return mechanism
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3D drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

CLARIFLOCCULATOR MODEL: SPF -C CENTRAL DRIVEN BRIDGE / PIER MOUNTED

CLARIFLOCCULATOR MODEL: SPF -C CENTRAL DRIVEN BRIDGE / PIER MOUNTED
30m Dia Clariflocculator supplied to 16 MLD CETP at Barhi
Application	Generally used in sewage treatment plants/ effluent treatment plants, to thicken the sludge by sedimentation of the suspended solid particle in the effluent water & to get the clarified water from the overflow
Type	SPT-A – centrally driven bridge/ pier mounted
Size range	Centrally driven – 5m to 40m dia
Rotor	Single stage reduction worm wheel type drive head / three stage reduction slewing ring ball bearing type center mechanism
Torque range	From 3400nm to 38000nm
Over load protection	Load cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3D drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

CLARIFLOCCULATOR MODEL: SPF -B PERIPHERAL DRIVEN PIER MOUNTED

CLARIFLOCCULATOR MODEL: SPF -B PERIPHERAL DRIVEN PIER MOUNTED
28m Dia Clariflocculator supplied to 18 MLD WTP at Nashik
Application	Generally used in raw water treatment plants/ effluent treatment plants, to clarify the water & to remove the turbidity, suspended particles.
Type	SPF -B peripheral driven pier mounted
Size range	Peripheral driven – 8 m to 60 m dia
Flocculator drive	Single stage reduction worm wheel type drive head (2 nos/ 4 nos)
Rotor	Slewing ring type turn table, traction carriage with poly urethane lined wheels
Torque range	From 3400nm to 38000nm
Over load protection	Protection on the gear box & overload relay in control panel
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

CLARIFLOCCULATOR MODEL: SPF -A PERIPHERAL DRIVEN PIER MOUNTED CAGE DRIVEN

CLARIFLOCCULATOR MODEL: SPF -A PERIPHERAL DRIVEN PIER MOUNTED CAGE DRIVEN
45m Dia Clarifier supplied to Cochin Refinery Ltd
Application	Generally used in raw water treatment plants/ effluent treatment plants, to clarify the water & to remove the turbidity, suspended particles.
TYPE	SPF -B peripheral driven pier mounted
Size range	Peripheral driven – 8m to 60m dia
Flocculator drive	Three stage reduction slewing ring ball bearing type center mechanism
Rotor	Slewing ring type turn table with lugs, traction carriage with poly urethane lined wheels
Torque range	From 3400nm to 38000nm
Over load protection	Protection on the gear box & overload relay in control panel
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

THICKENER MODEL: SPT-A – CENTRALLY DRIVEN BRIDGE MOUNTED

THICKENER MODEL: SPT-A – CENTRALLY DRIVEN BRIDGE MOUNTED
13.5 m Dia Sludge Thickener Supplied to 22.25 MLD STP at Vidisha
Application	Generally used in sewage treatment plants/ effluent treatment plants, to thicken the sludge by sedimentation of the suspended solid particle in the effluent water & to get the clarified water from the overflow
TYPE	SPT-A – centrally driven bridge mounted
Size range	Centrally driven – 3m to 30m dia
Rotor	Single stage reduction worm wheel type drive head
Torque range	From 3400nm to 38000nm
Over load protection	Load cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open

July 22, 2021
No Comments

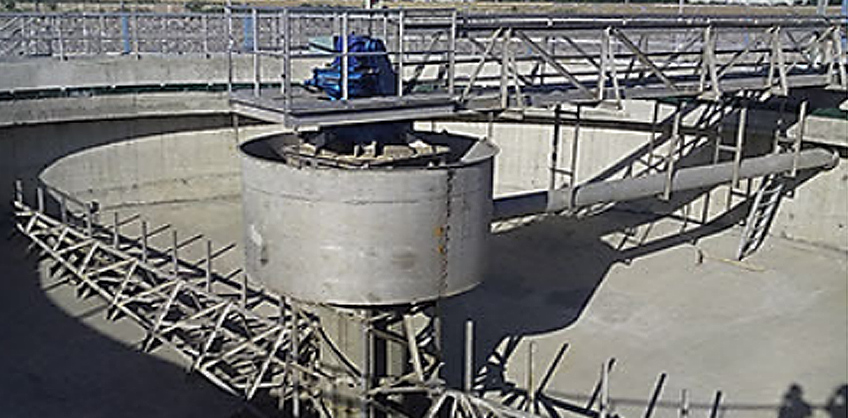

CLARIFIER MODEL: SPT-C – CENTRALLY DRIVEN PIER MOUNTED

CLARIFIER MODEL: SPT-C – CENTRALLY DRIVEN PIER MOUNTED
36m Dia Clarifier supplied to 162 MLD STP at Surat
Application	Generally used in sewage treatment plants/ effluent treatment plants, to thicken the sludge by sedimentation of the suspended solid particle in the effluent water & to get the clarified water from the overflow
Type	SPT-C – centrally driven pier mounted
Size range	Central driven – 12m to 60m dia
Rotor	Three stage reduction slewing ring ball bearing type center mechanism
Torque range	From 15000nm to 170000nm
Over load protection	Load cell digital type / high tension spring loaded mechanical mercury bulb type.
Material of construction offered	Mild Steel – E250 & E350 Stainless Steel grades -304, 304L, 316 & 316L Special materials- Super Duplex SS & Marine Grade Aluminium Special coating – Hot Dip Galvanizing, FRP lining & rubber lining
Optional features	Scum skimmer assembly, Stamford baffles, double launder & radial launder weir arrangement, local control panel, FRP/GI gratings walk way Staad analysed castilated / truss type/ custom made bridges upto 500KG/SQ.MTR UDL. 3D DRAWINGS
Drawings & documentation	3d drawings, Staad analysis, power, weir loading calculations, motor & geared motor complete set of data sheets
Erection & maintenance manual	Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogue	Click to open
Reference GA drawing	Click to open
Photo gallery	Click to open
