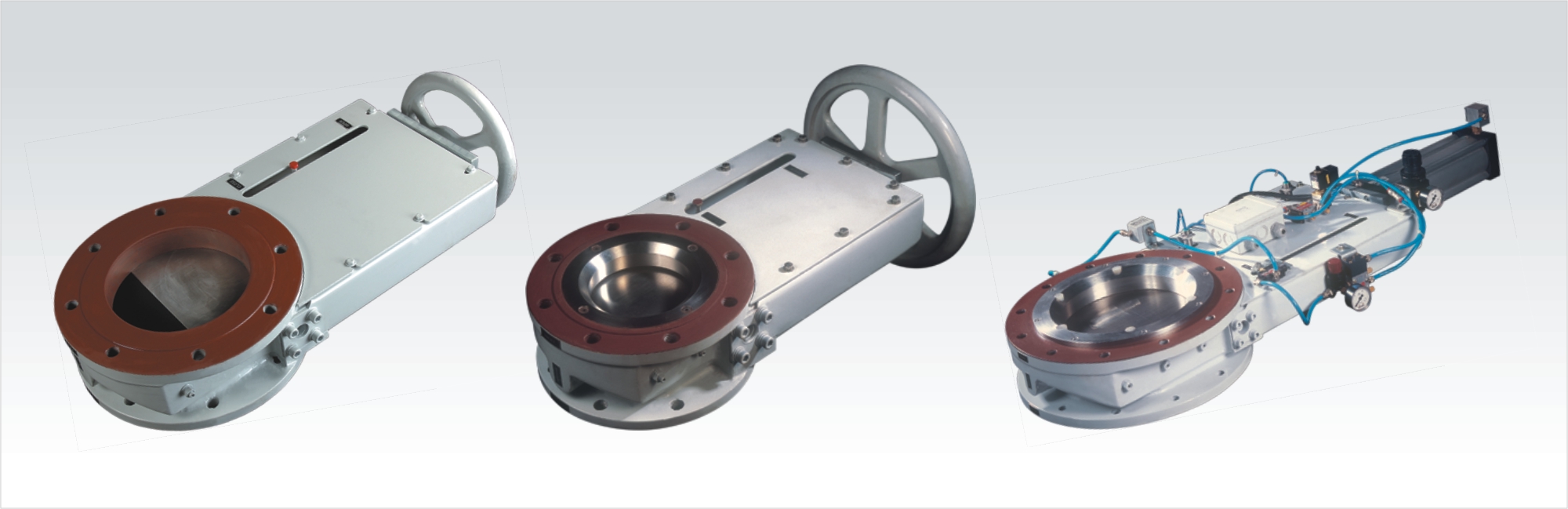

SLIDE GATE VALVE: UNIDIRECTIONAL, RESILIENT SEATED, MODEL: ZFB, SERIES C601/C611
|
SERIES: C-601, ZFB – Resilient seated valve with replaceable metallic ring – Cast Iron / Ductile Iron Construction

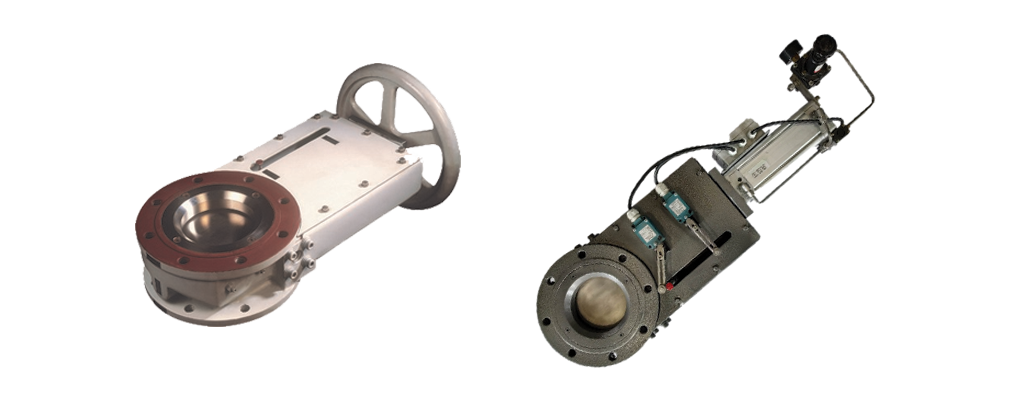

SERIES: C-611, ZFB – Resilient seated valve with replaceable metallic ring – Cast Stainless steel / Cast Steel Construction |
|
 |
|
| Application | These unidirectional valves are suitable for pressure-tight shut-off up to 3 Bar (45 PSI) for powder and granular materials. Its unique design ensures minimal material retention in the valve, the ability to achieve shut-off in standing columns and leak-tight to the environment. |
| Size Range | DN 100 (4”) to DN 600 (24”) |
| Applicable Standards | MSS SP-81 |
| Pressure Rating | PN3 (45 PSI) |
| Temperature Range | -20°C to 250°C |
| Flange drilling | ASME B16.5/ASME B16.47 #150 / BS-EN 1092 PN 10 |
| Dust Cover | Provided |
| Mode of operations | Manual, chain wheel, pneumatic, electric actuator and Hydraulic |
| Technical Features | Click to open |
| Drawing & Data Sheet | Click to open |
