DETRITOR MODEL: SP-DT-VT – VORTEX TYPE
| DETRITOR MODEL: SP-DT-VT – VORTEX TYPE | |
 | |

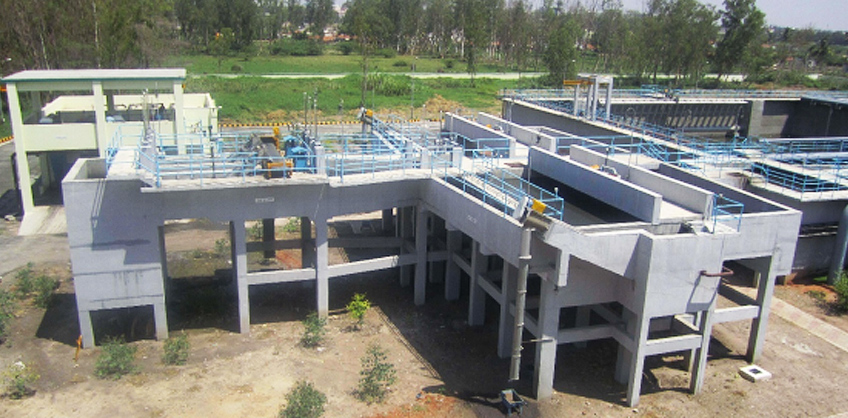

| Application | Generally used in sewage treatment plants/ effluent treatment plants, To remove the grit particles sizing greater than 0.15mm having density of 2.65. |
| Type | SPT-DET – centrally driven bridge mounted |
| Capacity range | 1 MLD to 200 MLD |
| Chamber size range | 1.5 M TO 6 M dia with 2M TO 4.5 M HT |
| Rotor | Single stage reduction worm wheel type drive head |
| Torque range | From 3400nm to 10000nm |
| Over load protection | Protection on the gear box & overload relay in control panel |
| Material of construction offered | Mild steel – E250 & E350 Stainless steel grades -304, 304L, 316 & 316L Special materials- super duplex SS Special coating – hot dip galvanizing |

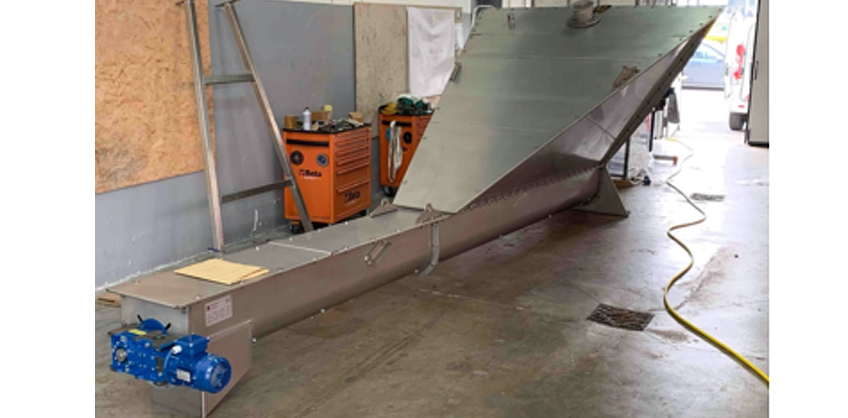

| Accessories | Screw classifier mechanism, air lift pump /turbo grit pump |
| Optional features | Local control panel |
| Drawings & documentation | 3 D drawings, power, motor & geared motor complete set of data sheets |
| Erection & maintenance manual | Project specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers. |
| Product catalogue | Click to open |
| Reference GA drawing | Click to open |
| Photo gallery | Click to open |
